Conveyor width 100 mm


Faxes conveyor’s simplifies the work and increases the safety of woodhandling

Facts
The conveyors are made of sheet metal and they are driven by a worm gear in the upper part. This causes the engine to pull up the wood, resulting in greater reliability (no slip). Two strong galvanized support legs gives raising and lowering durability with high stability. The support legs are also connected with three galvanized stiffeners which stiffened up the conveyor further.
The power support could be 230V or three phase 400V. They could also be equipped with hydraulic motor.

Conveyors with bandwidth 100 comes with wheels in the lower part.

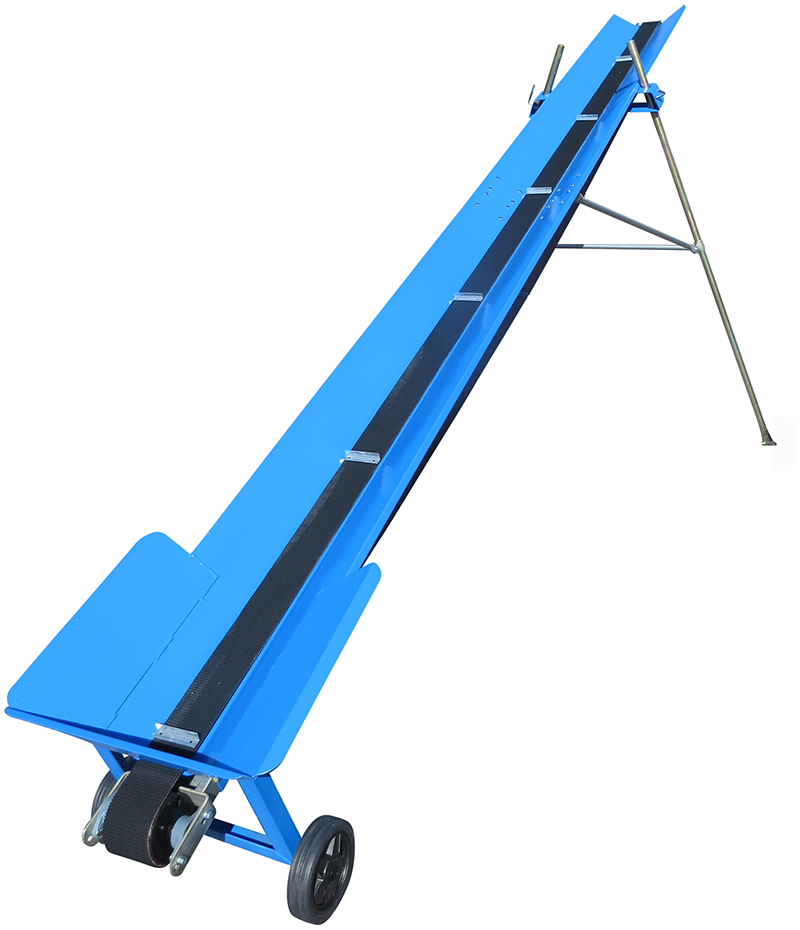

Conveyor for log width 100 mm length 5,0 m



Logconveyor

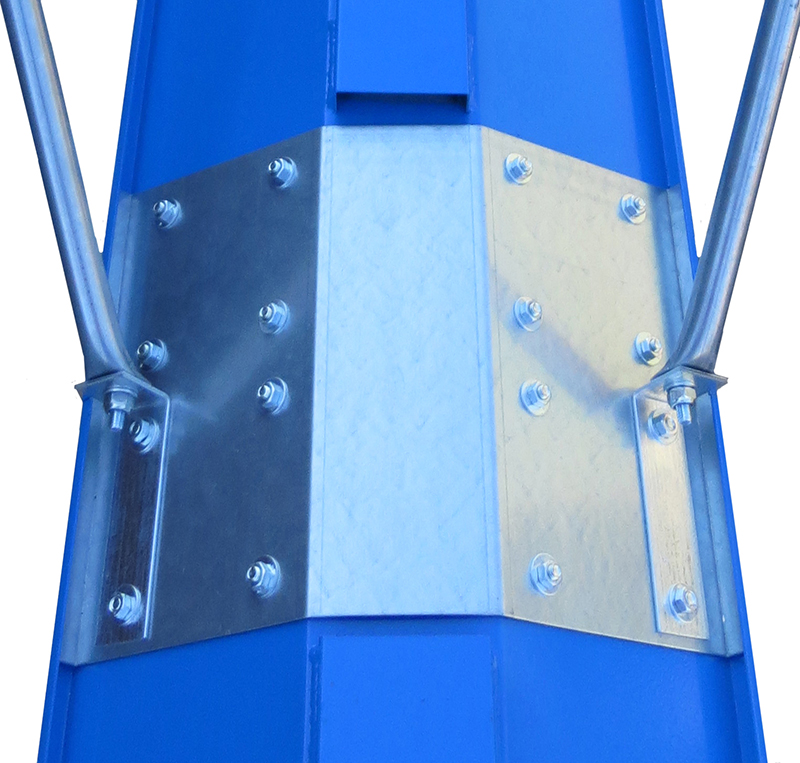

Sections
The conveyors are supplied in 2.5m sections which are screwed together with a galvanized plate. This gives all the Faxes conveyors a very stable and simple conctruction.

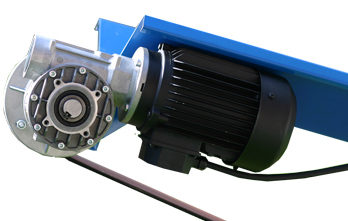

Logconveyor wormgear

Operation
The worm gear in the upper part of the conveyor helps to secure great reliability.

Adjusting belt conveyor 100 mm Adjusting belt tension
All conveyors are eqiupped with a belt tensioning device in the lower part.
Flanges
All conveyors with 100 mm width have galvanized flanges in sheet metal. They are screwed on the conveyor belt.

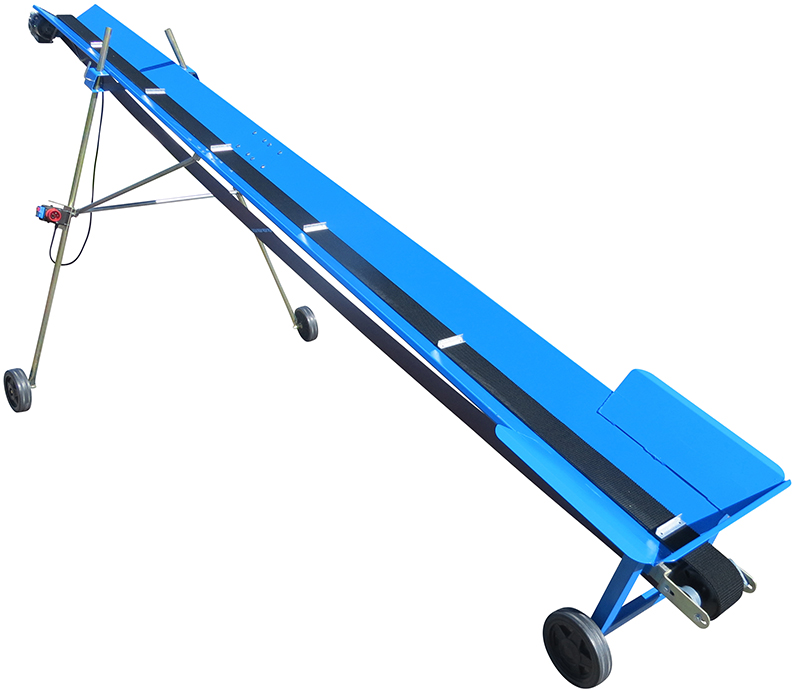

Logconveyor Faxes

Technical Data:
Length 5,0 m 7,5 m
Weight 75 kg 95 kg
Bandwidth 100 mm 100 mm
Height of flanges 25 mm 25 mm
Speed of band 0,6 m/s 0,6 m/s
Engine power 0,37 kW 0,37 kW
Torque 45 Nm 45 Nm
<More images>
Logconveyor 100 mm dimensions
A
B
C
D
E
F
G
H
I
J
K
5000
560
150
1000-2500
125
620
500
435
100
420
100
7500
560
150
1000-2500
125
620
500
435
100
420
100


Logconveyor operation manual Operation manual from year 2015
Logconveyor operation manual Operation manual before year 2015
